Coperion K-Tron Feeders

Quick Change Feeder QC

Get in touch about this product
Download large image

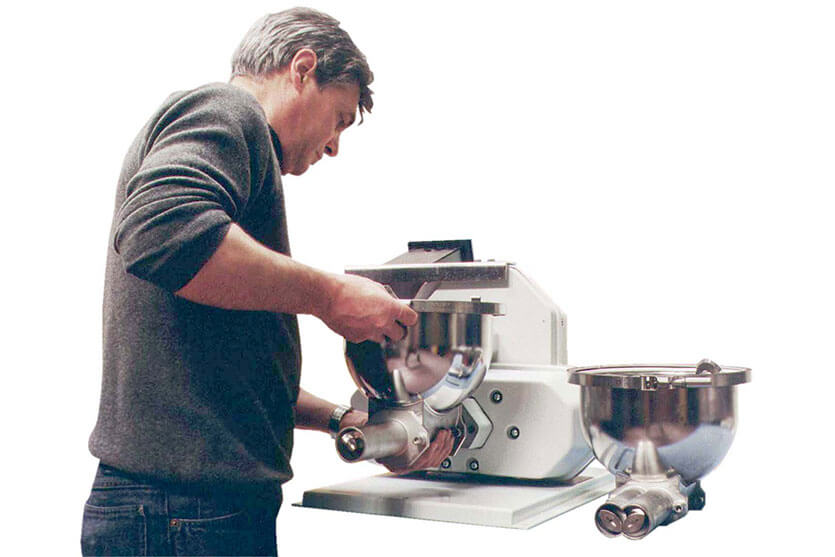

Fast exchange of the feeding module and easy cleaning
Fast exchange of the feeding module and easy cleaning
Download large image

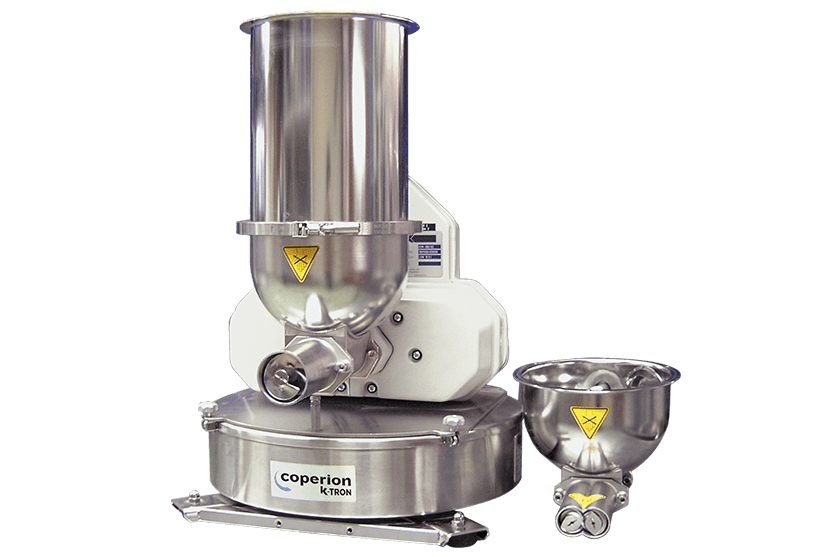

K2-ML-D5-QC: A high-accuracy gravimetric screw feeder with two interchangeable QC-modules
K2-ML-D5-QC: A high-accuracy gravimetric screw feeder with two interchangeable QC-modules
Download large image

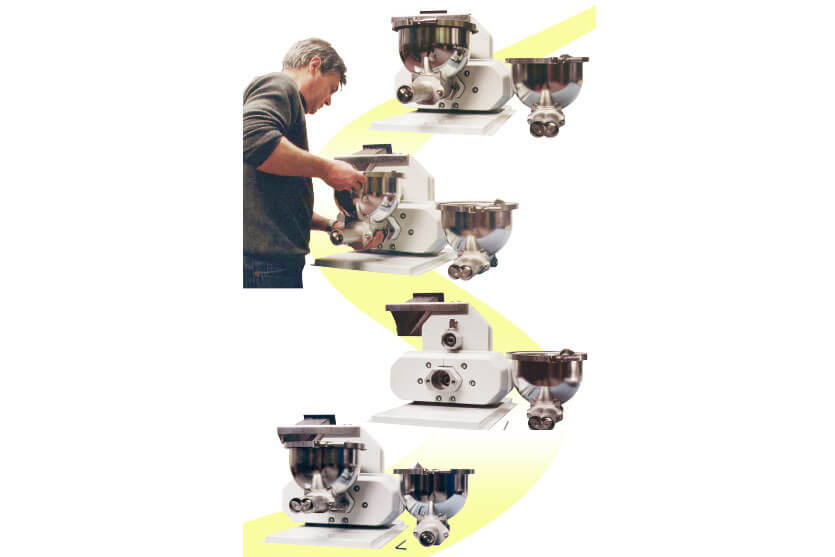

One feeding element can easily be removed and replaced by a different one - all within minutes
One feeding element can easily be removed and replaced by a different one - all within minutes
Download large image

Coperion K-Tron

One feeder for handling a large variety of products and a simple means of preventing contamination

Coperion K-Tron’s T35/S60 Quick Change Feeder is specially designed for applications requiring the maximum possible material handling and changeover flexibility along with the convenience of easy cleaning capability. It enables a fast exchange of the feeding module which minimizes downtime and eliminates the risk of cross-contamination. The QC-Feeder is available in economical volumetric or high-performance loss-in-weight configurations.

Benefits & Features

  • Maximum material handling capability and conversion flexibility
  • Fast and easy changeover, disassembly and cleaning
  • Convenient for remote wet washdown
  • Minimizes installation cost and process downtime
  • Full compatibility with K2M feeders

Related Industries

  • Plastics
  • Plastics Recycling
  • Chemicals
  • Food & Pet Food
  • Pharmaceutical
  • Minerals
  • Nonwovens

Areas of Application

The Quick Change Feeder is the ideal solution:

  • Where frequent and easy cleaning is required
  • Where product contamination must be prevented
  • Where only one feeder must handle a large variety of products
  • Where ingredients must be changed quickly and cleanly

Design Features

The Coperion K-Tron Quick Change Feeder allows switching between a feed bowl with single screw and a feed bowl with twin screws within minutes, enabling one feeding station to handle a huge variety of materials. Furthermore, while the removed feed bowl and screw(s) are being cleaned, the replacement bowl and screw(s) can continue feeding.

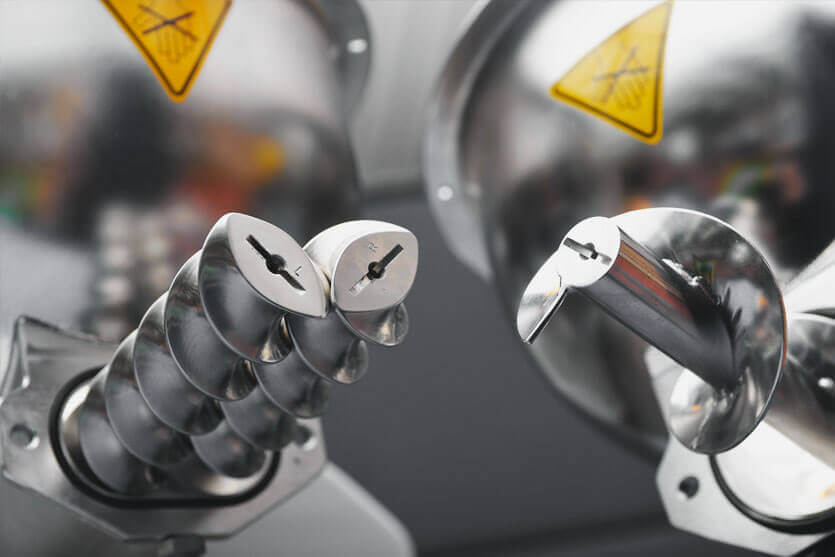

Whereas single screw feeding elements are ideal for handling free flowing powders, granules, pellets and other nonflooding materials, they often don't work very well with many of the more difficult-to-handle materials. Twin screw elements employing two self-wiping, closed-flight screws, intermeshed side by side, efficiently transport floodable powders as well as sticky or otherwise hard-to-flow materials to the discharge.

Maximum flexibility for the QC-Feeder is derived from the combination of the available T35 and S60 screw feeder configurations: You can choose from the same selection of scales, hoppers, and screws provided for the T35 and S60 screw feeders.

Feed rates depend on the feeder type and configuration. Read more about the T35 and S60 feeder types on the respective feeder pages:

Download papers:

Related Topics

Coperion K-Tron KCM Feeder Control Module with LCD display

SmartConnex Controls

Complete control at your fingertips

Feeding Technology

Over 100 years of know-how behind our products

Video

Play video
Coperion K-Tron Quick Change feeders allow for fast recipe changes
