Raymond® Cage Mill Flash Drying System
Raymond® Cage Mill

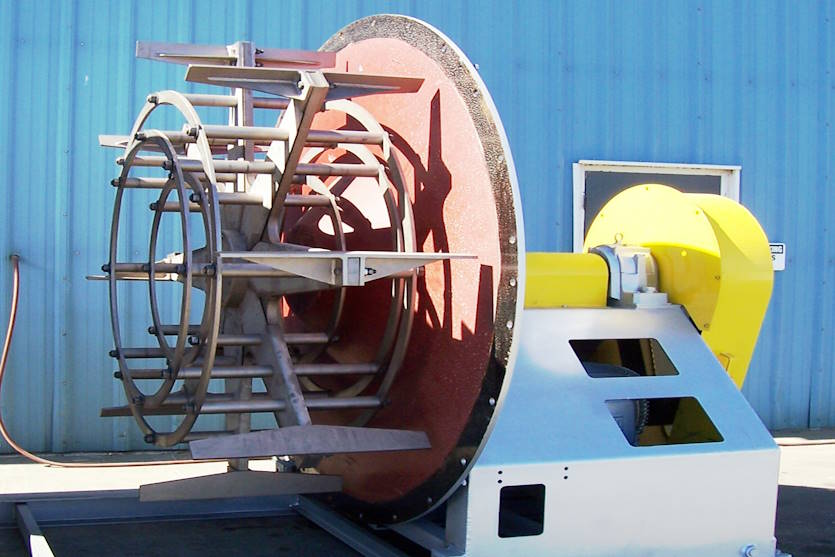

The cage mill design consists of an agitator type rotor enclosed in a welded steel housing with carbon steel liners and a tangential outlet. A rotor and blade assembly with sets of variable length carbon steel bars are arranged and welded concentrically on a steel spider.
The cage mill housing is provided with bolted, machined, gas and dust tight flanged joints. The v-belt driven mill is supplied with heavy-duty roller bearings that allow for a trouble free, smooth operation under the high temperature conditions the mill experiences.
Raymond® Cage Mill Flash Drying System
The cage mill flash drying system design consists principally of a feed conveyor, cage mill, air heater, dust collector and system fan, along with the connective ductwork to incorporate these components into a complete system.
