Bartlett-Snow™ Rotary Kiln
Design features

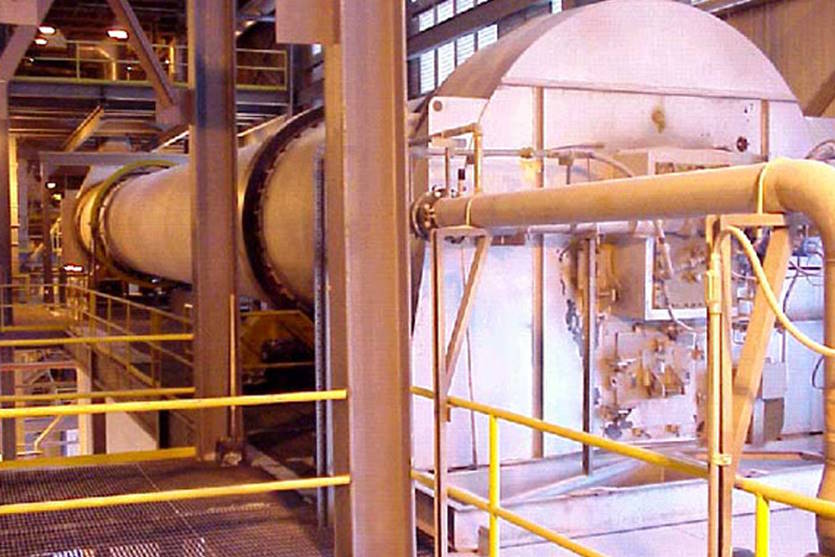

Bartlett-Snow™ rotary kiln refractory-lined cylinders are supported in two riding rings, each resting on a pair of trunnion rolls. The cylinder is rotated using a girt gear and pinion drive arrangement. Both ends of the cylinder are enclosed by stationary breechings with rotary seals, as required for the application. The feed breeching is refractory-lined and can utilize a feed chute or a variety of feeding mechanisms. At the discharge end, the refractory-lined firing hood is carriage mounted so that it can be rolled back to permit access to the cylinder interior.
Bartlett-Snow™ rotary kilns are provided with automatic temperature, pressure and electrical controls, with burner systems capable of firing natural gas, propane and/or oil. Available in sizes ranging from 24-144 in / 610-3657 mm in diameter with lengths 12 ft to over 100 ft / 3.65 to over 30.48 m.
