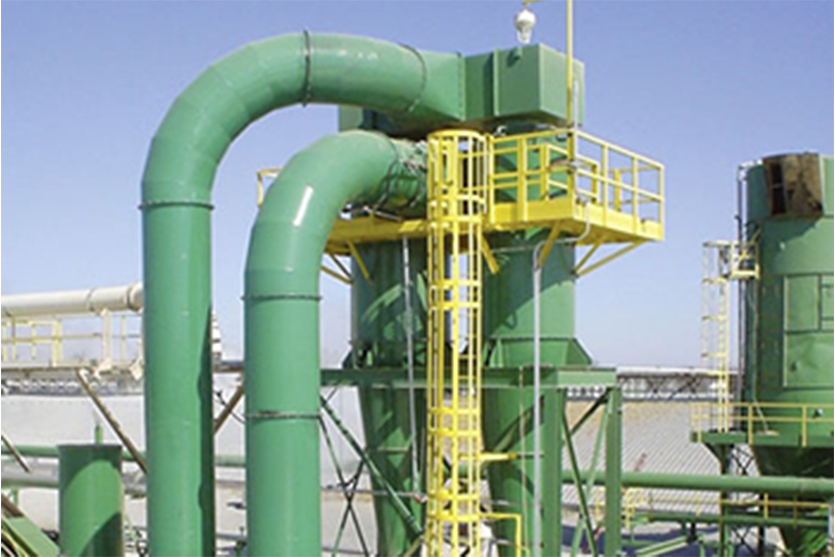

Cyclone Dust Collector System
Cyclone Dust Collector System
Download large image

With material suitable for cyclonic separation, cyclones prove to be effective as separators

A good pneumatic system efficiently separates material from the flow of air when it reaches the destination. When the material is of a consistency and weight suitable for cyclonic separation, a cyclone is the adequate separator. The cyclone has no moving parts, no filters to clean, and plant air and electricity are not needed for operation. Whether you are moving 60 to 6,000 CFM [100 to 10,000 m3/hr] of air, there is a cyclone to meet your needs.

Benefits

  • The cyclone is configured to accelerate the natural separation of material from air.
  • The cyclone has no moving parts, no filters to clean, and plant air and electricity are not needed for its operation.
  • Cyclones prove to be effective as filterless pneumatic receivers.
  • Coperion filters are available in aluminum, stainless steel, painted steel, wear-resistant surfaces.

Related Industries

  • Plastics
  • Plastics Recycling
  • Chemicals
  • Batteries
  • Food & Pet Food
  • Minerals
  • Nonwovens

Available Models

Coperion SZ / SZS filter

The Coperion SZ, SZS cyclone separators are designed with the highest quality and in accordance with the principle "form follows function".

Designed for dust separation of dust particles from conveyed air at the end of a pneumatic conveying system. Cyclones have a good separation efficiency, if the product has appropriate properties.

Literature Downloads

Cyclone Dust Collector System - Industrial Dust Collector

Coperion cyclone dust collectors are capable of handling heavy dust loads. The product range includes cyclones serving as pre-collectors in a dust collection system or as product receivers. The cyclone receivers Coperion provides handle airflows from 6,000 to 120,000 CFM. The high efficiency design provides superior collection on a variety of materials and particle sizes.

Typical applications for cyclone dust collectors include:

  • High temperature applications off dryers and milling operations.
  • Areas where the potential for fire is high such as wood and biomass grinding operations.
  • Pre-separators for material that may not be suited to collect directly in a baghouse such as paper/end trim, direct reduced iron (DRI), and refuse derived fuel products.
  • Reducing loading into a baghouse so that a high entry inlet may be used to reduce interstitial velocity and a smaller baghouse footprint.
