Coperion Hygienic PLUS Rotary Valves

With the range of discharge valves type ZRD and blow-through valves type ZXD, Coperion GmbH now offers the food industry the first rotary valves in the world in Hygienic PLUS execution to be certified in compliance with the criteria of the European Hygienic Engineering & Design Group (EHEDG), type ED.

These criteria formulate the requirements to be met by components that are used in systems with dry operation and dry cleaning processes. Important features of the certified Hygienic PLUS rotary valves are that they are easy to dismantle and that the component areas can be easily accessed for cleaning and inspection. The surfaces are smooth and the interfaces to the areas in contact with the product are step-free. Coperion was already a pioneer years ago in the development of CIP-compliant (Cleaning in Place), certified rotary valves and diverter valves that are cleaned with liquids. With the new EHEDG type ED-certified rotary valves the company now also supplies dry cleaning components to assist system integrators and end users who must fulfill requirements when it comes to sanitary design and operational safety in the food industry during the production, processing and transport of powders and pellets. The ZRD and ZXD Hygienic PLUS rotary valves are used in pneumatic conveying systems and for the discharge of powdered and pelletized materials.

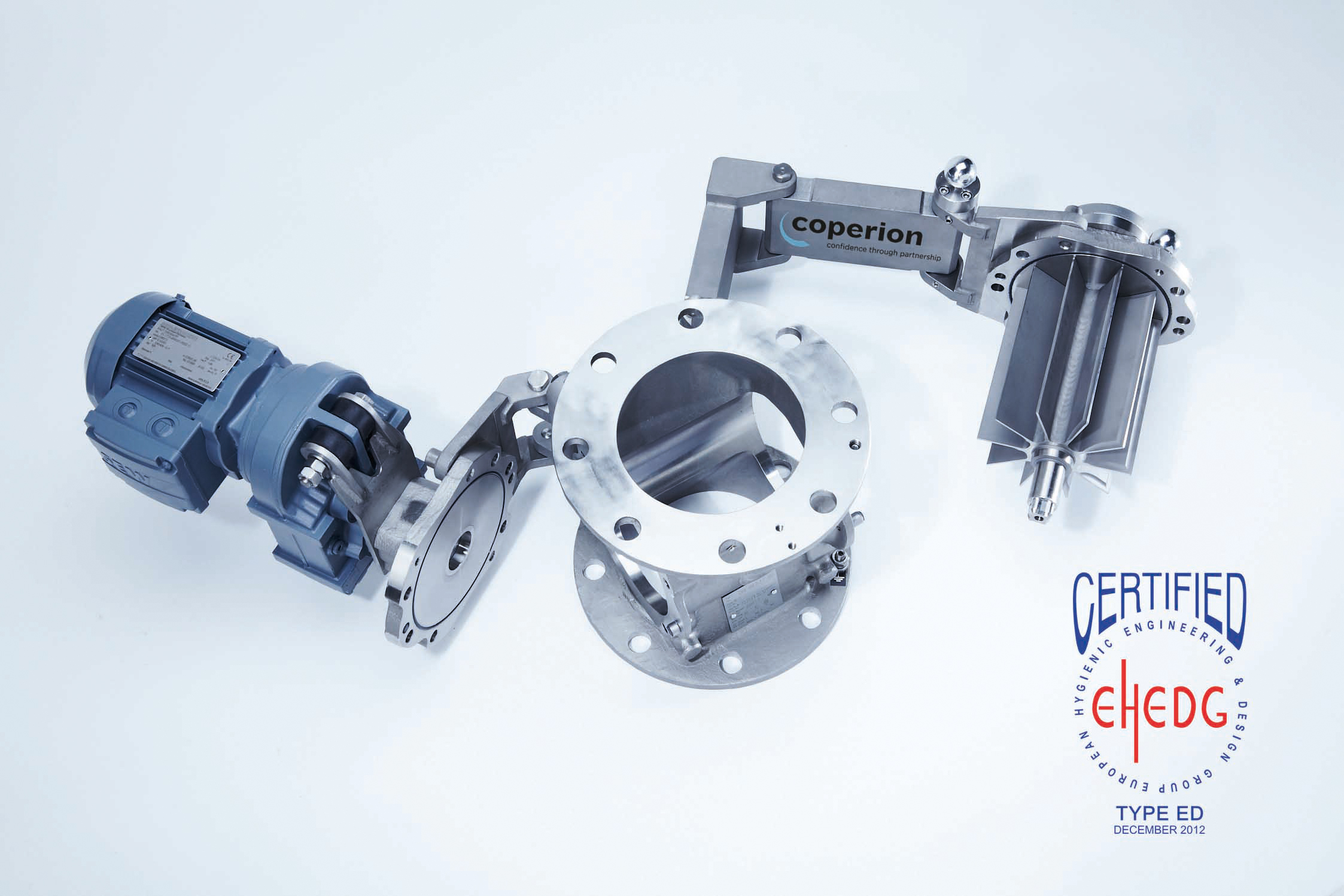

Experience has shown that in consistently dry operation processes the growth of micro-organisms resulting from residual moisture and product residues after a wet cleaning of systems can be prevented. However, not all components are equally suitable for use in dry processes. The requirements laid out by the EHEDG can be of assistance in the assessment of their suitability. According to these specifications, the Coperion ED-certified rotary valve types ZXD (blow-through valve) and ZRD (discharge valve) in Hygienic PLUS execution satisfy all requirements for dry cleaning. In addition to standard step-free connections, polished surfaces that are in contact with the product with an average peak-to-valley height of ≤ 0.8µm and FDA compliant seals, both types are available with additional options. For example, the track-proven FXS (Full Access System) swing-out system provides free access to the interior of the rotary valve. The also optional sealing cassette for the shaft seal in the side plate can be easily pulled out with a convenient tool and dismantled into its individual parts. Both valve types not only meet the requirements of the regulation (EC) no. 1935/2004 (requirements to be met by materials and objects that are destined to come into contact with food) but are also available as versions that are suitable for use in potentially explosive areas (ATEX zones).
