ZSK Mv¹⁴ Twin Screw Extruder

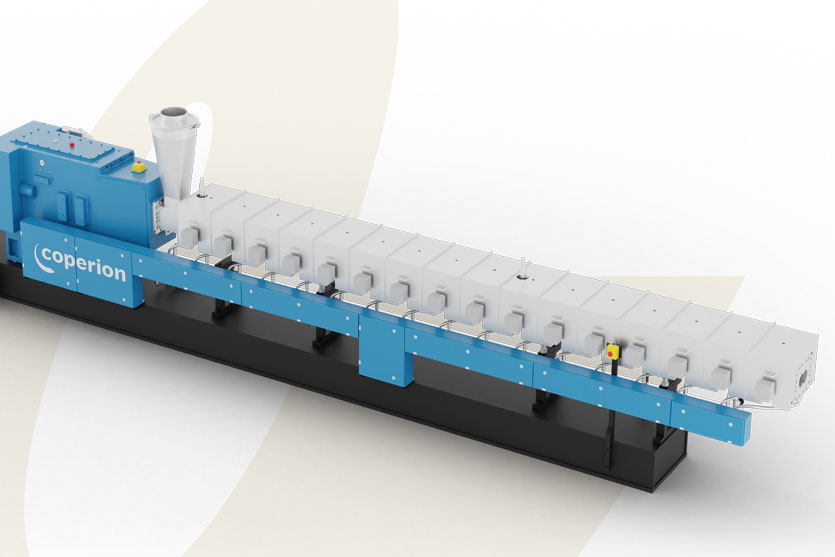

ZSK 98 Mv¹⁴ twin screw extruder for film production and chemical reaction processes

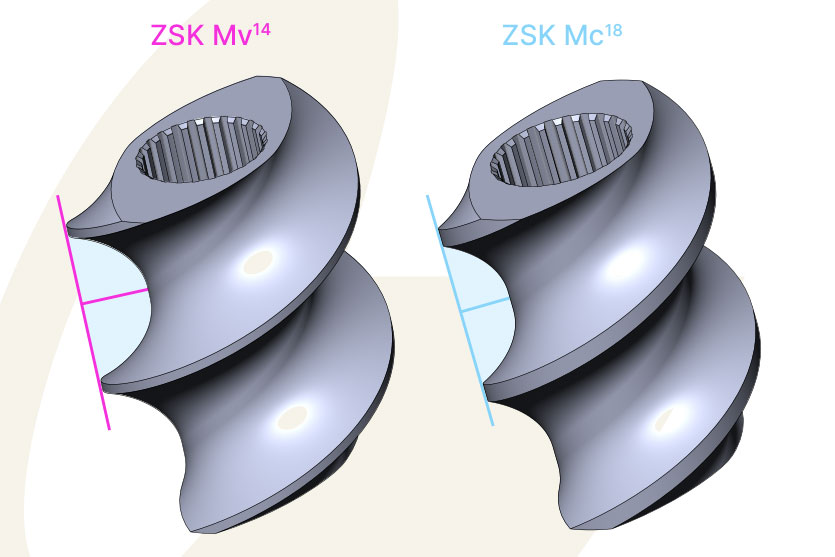

Comparison of Coperion screw elements of the ZSK Mv¹⁴ series and the ZSK Mc¹⁸ series. The ZSK Mv¹⁴ screw elements are characterized by their large free volume.

Download large image

ZSK Mv¹⁴: Twin screw extruder for products with high volume requirements

The ZSK Mv¹⁴ twin screw extruder series unites an optimally balanced large free screw volume with a D_o/D_i of 1.8, with high screw speeds and a high specific torque. Products with a specific energy requirement < 0.13 kWh/kg can be produced with high throughput rates reaching highest product qualities.

The specific torque of the ZSK Mv series twin screw extruders has been increased to 14 Nm/cm³. With this 24% increase in torque compared to the previous model, the new ZSK Mv¹⁴ extruders achieve a 24% increase in throughput when processing products with high volume and high torque requirements. At the same time, ZSK Mv¹⁴ twin screw extruders ensure improved product quality of the compounds when processing shear-sensitive products.

With its significant increase in torque, the ZSK Mv¹⁴ achieves the desired throughput ranges even at significantly lower speeds or with smaller extruder sizes. This reduces investment costs, energy costs and space requirements for compounders.

Advantages of the ZSK Mv¹⁴ extruder at a glance

Maximum power density
Gentle product handling for maximum quality
Maximum screw speed
Maximum productivity
Maximum conservation of resources by high efficiency
Maximum flexibility in product changes and machine modifications
Optimum graduation of the machine sizes
Excellent mixing behaviour
Reliable scale-up
Very wide range of wear protection solutions
Comprehensive process engineering support
Flexible solutions for control system
High reliability and proven technology of the machines
Comprehensive after-sales services by worldwide Coperion service network
Large number of application-specific solutions to increase throughput and productivity, e.g. quick-release features, side devolatilization ZS-EG, Feed Enhancement Technology (FET)

Typical areas of application of the ZSK¹⁴ PLUS extruder

Processes with high volume requirement such as products with a low bulk weight, poor feed properties or high filler content
Devolatilization processes, e.g. in substances containing solvents
Processes with low energy consumption
Shear sensitive products (e.g. effect pigment masterbatch)
Carbon black masterbatch
PET masterbatch
HFFR (ATH, Mg(OH)2)
Cross linkable cable compounds
PVC
Rubber
Polymerization (PU, POM)
Powder coating
Catalyst carrier
Adhesives, sealants
PP/hollow glass
Food
Pet food
Cereals, starch

Coperion twin screw extruder ZSK screw elements

The deeply cut screw flights with a Diameter ratio D_o/D_i of 1.8 result in a very large free screw volume.

Very good feed intake of additives with low bulk density such as flours, starches, pigments, fillers, additives
Low shearing
Minimal thermal stress on the raw materials
Long residence time for reaction processes
Safe devolatilization

Coperion twin screw extruder ZSK twin screws

The ZSK Mv¹⁴ series is designed for speeds of up to 1,800 rpm.

Very high throughput rates
Low investment and operating costs due to smaller machine sizes at the given throughput rate
Favorable price-performance ratio

Coperion twin screw extruder ZSK MvPLUS Screw elements

The specific torque of the Mv¹⁴ is 13.6 Nm/cm³. It has been increased by 24 % in comparison to the predecessor model ZSK Mv PLUS.

Increase in throughput of up to 24 % in comparison to ZSK Mv PLUS
Wide operating window
Great recipe flexibility

Electronically Secured Maintenance Opening at Gearbox Lantern

The gearbox lantern of Coperion ZSK twin screw extruders can be optionally equipped with an electronically secured maintenance opening. As soon as the screw shafts come to a complete stop, service personnel can open the gearbox lantern without tools, guaranteeing secure, easier access to the screw shaft coupling.

This feature, which is available from a size of ZSK 32, significantly simplifies screw changes and maintenance, which again reduces the machine’s downtimes, thus contributing to greater efficiency of the system.

Technical data of the ZSK Mv¹⁴

ZSK	Max. screw speed [min^-1]	Screw diameter [mm]
ZSK 27 Mv¹⁴	1,800	27
ZSK 34 Mv¹⁴	1,800	34
ZSK 43 Mv¹⁴	1,800	43
ZSK 54 Mv¹⁴	1,800	54
ZSK 62 Mv¹⁴	1,800	62
ZSK 76 Mv¹⁴	1,800	76
ZSK 98 Mv¹⁴	1,500	98
ZSK 125 Mv¹⁴	1,500	125
ZSK 140 Mv¹⁴	1,000	140
ZSK 248/250 Mv PLUS	300*	248
