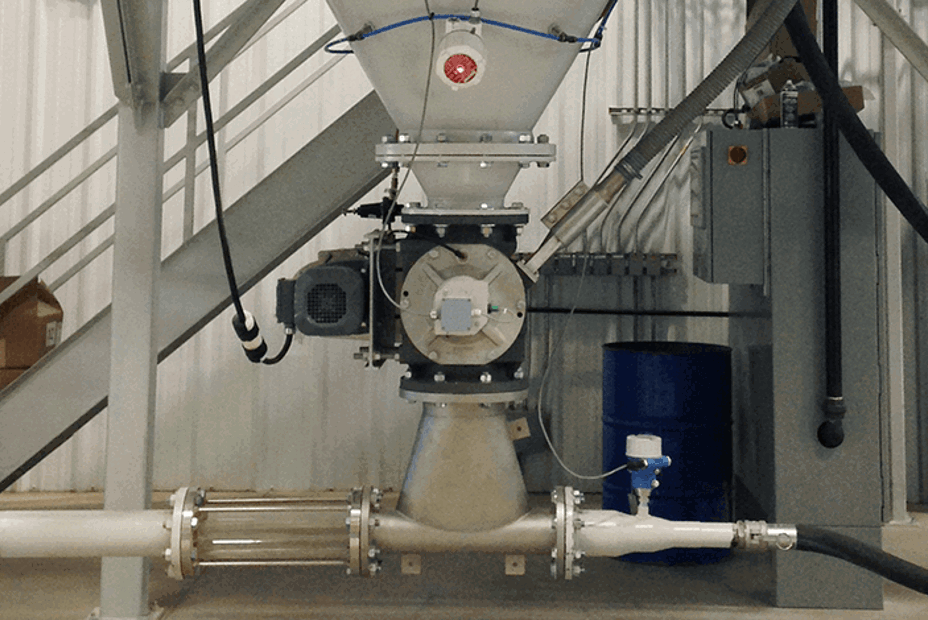

LMR-X Dense Phase Rotary Valve

Dense phase rotary valve systems are ideal for achieving high conveying capacities, even at long distances. These parameters are possible due to the rotary valve’s ability to withstand 3.5 bar(g) [51 psi(g)] while minimizing leakage and through use of Coperion LMR-X air control unit. The high pressure rotary valve system is ideal for coarse granular or pellet size, friable or temperature sensitive materials at various rates and/or long distances depending upon the application.

Key benefits

  • Laval nozzle with variable effective cross section due to adjustable conical needle
  • Shut off function included
  • Activation by linear I/P positioner with 4 - 20 mA
  • Compressor or net version available
  • Options: Contact manometer, pressure transmitter, safety valve, version for use in ex-zones (ATEX)

Related Industries

  • Plastics
  • Plastics Recycling
  • Batteries
  • Food & Pet Food
  • Pharmaceutical
  • Minerals

Applications

The LMR-X air control unit is used to vary compressed air pressure and flow to achieve all phases of conveying. The unit includes a pressure relief valve for system protection and an assortment of instruments for optimizing the performance. It provides for adjustment of the air flow rate and pressure to suit different pipe diameters as well as different conveying capacities, conveying routes and various materials, all in the same conveying system.
