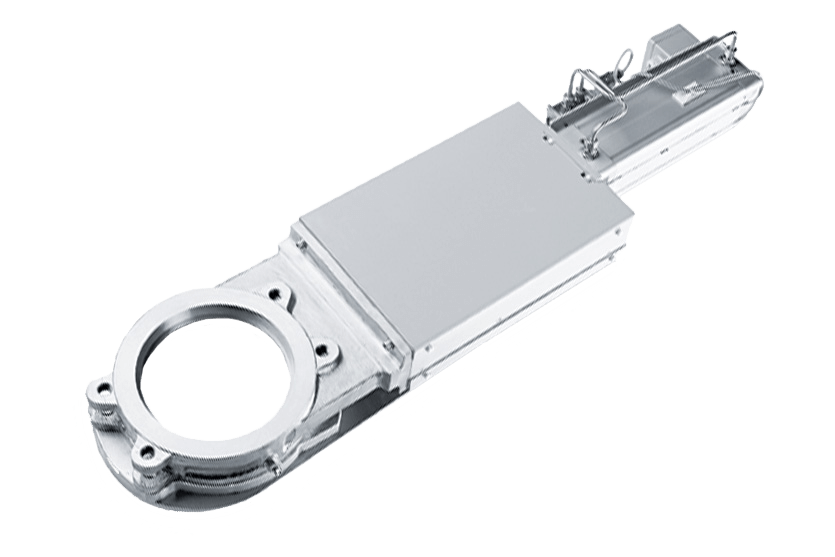

Universal Gate Valves FUS & FUH

Want to find out more about this product?

Get in touch

Wafer Valves for Powders and Granular Products

  • Made of stainless steel with large free cross section and sealed gate blade
  • For installation between two flanges in gravity pipes at up to 1.5 barg (FUS) and 3.5 barg (FUH)
  • Low construction height

MAIN FEATURES

  • Pressure range
    FUH:3.5 barg (51 psi), FUS: 1.5 barg (21 psi) system and differential pressure
  • Operation temperature
    -20°C up to 100°C
  • Application
    Suitable for fluid group 2 according PED
    (fluid group 1 on demand), for all bulk materials with d10 >10 µm and d90 < 6 mm
  • Seal configuration
    Seal in the drop through opening, gland sealed to the outside
  • Material of construction
    Stainless Steel

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals
