Coperion Feeder Finder

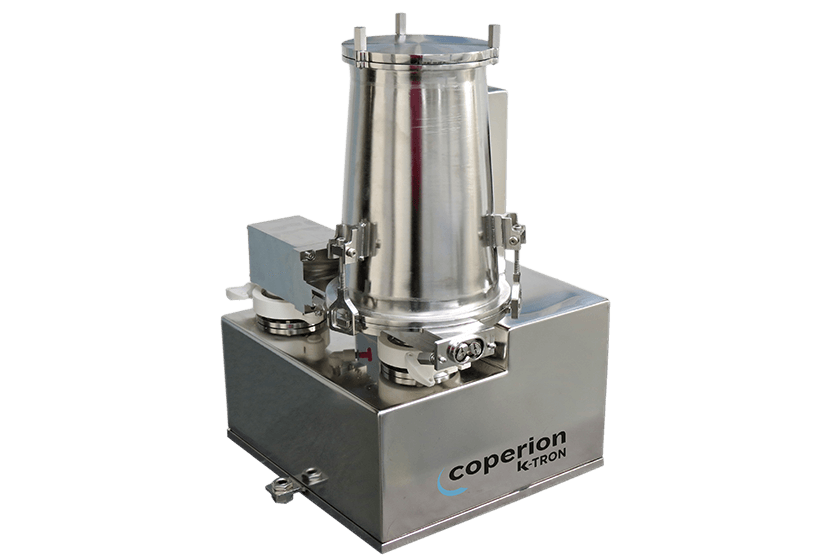

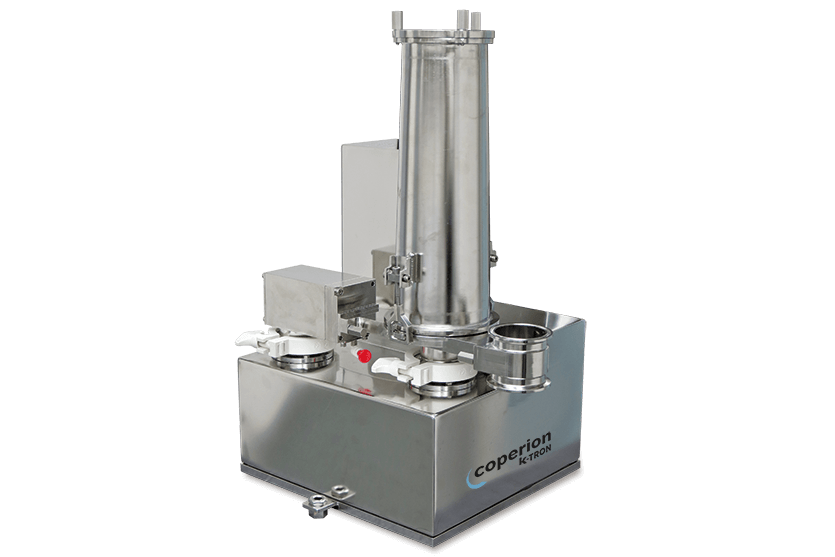

MT12 & MT16 Micro Screw Feeders

Want to find out more about this offering?

Get in touch
Coperion K-Tron

Microfeeding at its best

Coperion K-Tron’s family of twin screw microfeeders has been specially designed to provide maximum accuracy at minimal feed rates, which makes these feeders ideal for use in the chemical and pharmaceutical processing industries. Unique design features ensure that high value ingredients are fed accurately at rates as low as 32 g/h with minimal residual material left in the feeder. The modular design means more flexibility for the process and easy access to all parts for cleaning and maintenance. The 12 mm and 16 mm twin screw feeding modules are completely interchangeable and can feed a wide range of free-flowing to difficult powders.

The MT12 & MT 16 twin screw microfeeders are ideal for feeding high cost additives in any process that requires second to second performance with a high degree of accuracy.

benefits & features

  • MT12 feed rates range from 0.031 to 10.71 dm3/h [0.001 to 0.39 ft3/h]
  • MT16 feed rates range from 0.083 to 33.11 dm3/h [0.003 to 1.17 ft3/h]
  • 12 mm and 16 mm diameter twin screw feeding modules
  • Machined base with maximum screw opening and agitator for optimal screw filling
  • Bottom-driven vertical agitator provides accurate screw fill with minimal residual material
  • Quick coupling design for easy cleaning of product contact parts
  • All product contact parts in stainless steel
  • One stepper motor drives both screws and agitation
  • Completely oil and grease free drive system
  • Optional protective enclosure to reduce atmospheric/climatic influences
  • Versions available for ATEX and NEC hazardous locations

Related Industries

  • Plastics
  • Plastics Recycling
  • Chemicals
  • Batteries
  • Food & Pet Food
  • Pharmaceutical

Download product specification sheet for more details:
