Coperion K-Tron

Reliable feeding of free flowing bulk materials

Single screw feeders are ideal for feeding free flowing bulk materials such as pellets and powders.

Volumetric screw feeders are the most common and economical feeders you can buy. Coperion K-Tron makes both single screw and twin screw volumetric and gravimetric feeders in a wide range of sizes to meet your feed rate requirements and solve your material handling problems. Some are optimized for quick material changes and can even be configured for differing material properties. Others feature easy cleanability and meet food and pharmaceutical sanitary requirements.

Benefits & Features

  • Volumetric and gravimetric configurations
  • Wide range of sizes and configurations available
  • Modular design
  • High accuracy SFT weighing technology
  • State-of-the-art controls

Related Industries

  • Plastics
  • Plastics Recycling
  • Chemicals
  • Batteries
  • Food & Pet Food
  • Pharmaceutical
  • Minerals
  • Nonwovens

Available Models

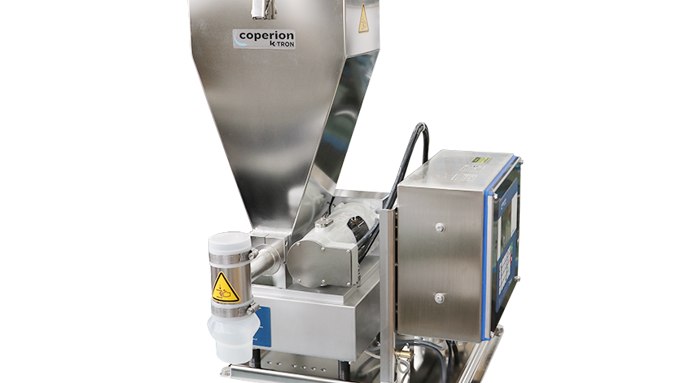

KQx4 gravimetric single screw feeder
KQx4 single screw feeder with 11 liter hopper on SFS platform scale

The KQx4 compact single screw feeder is available as a volumetric unit or as a gravimetric unit on an SFS platform scale.  It features a Quick Change design, allowing for quick and easy exchange of the feeder and hopper section, including feed screw, for greater flexibility in changing recipes.

Feed Rates

   Spiral Screws
Min. Max.
coarse - dm3/h 0.05 218
coarse - ft3/h 0.002 7.7
fine - dm3/h 0.06 183
fine - ft3/h 0.002 6.46

Product contact parts are manufactured of stainless steel.

Consult Product Specification Sheet for more details.

Download Product Specification Sheets

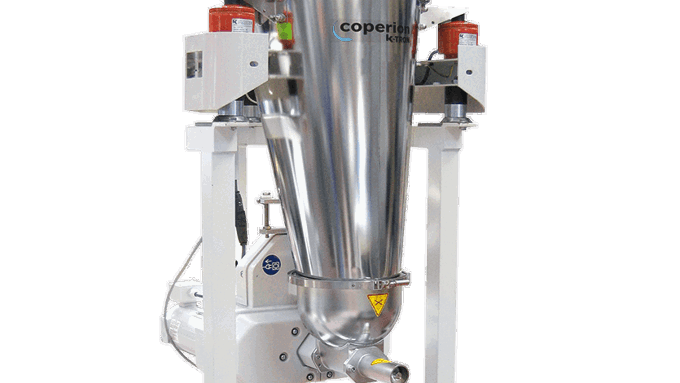

K2-ML-S60 single screw feeder on three SFT load cells

The S60 single screw feeder is available as a volumetric unit or as a gravimetric unit with a choice of platform scale or three-point suspension scale.

Feed Rates

   Auger screws Spiral screws
Min. Max. Min. Max.
coarse - dm3/h 0.14 4404 0.15 3669
coarse - ft3/h 0.005 155 0.005 130
fine - dm3/h 0.4 2752 0.5 3002
fine - ft3/h 0.01 97.2 0.02 106

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download the Product Specification Sheets

KS60

The KS60 single screw feeder is available as a volumetric unit or as a gravimetric unit with a choice of platform scale or three-point suspension scale.

Feed Rates

   Auger screws Spiral screws
Min. Max. Min. Max.
coarse - dm3/h 0.14 4140 0.14 3449
coarse - ft3/h 0.005 146 0.005 122
fine - dm3/h 0.4 2587 0.5 2822
fine - ft3/h 0.01 91 0.02 100

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download the Product Specification Sheets

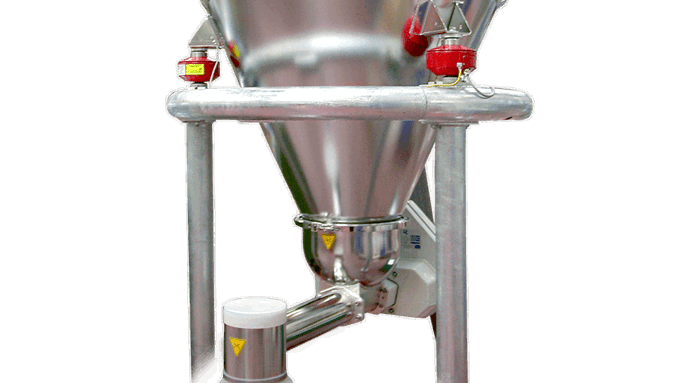

S100 gravimetric feeder on three SFT load cells

The S100 single screw feeder is available as a volumetric unit or as a gravimetric unit with a three-point suspension scale.

Feed Rates

   Auger screws Spiral screws
Min. Max. Min. Max.
coarse - dm3/h 20 17135 23 12455
coarse - ft3/h 0.7 605 0.8 440
fine - dm3/h 13 11126 12 9864
fine - ft3/h 0.5 393 0.4 348

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download the Product Specification Sheets

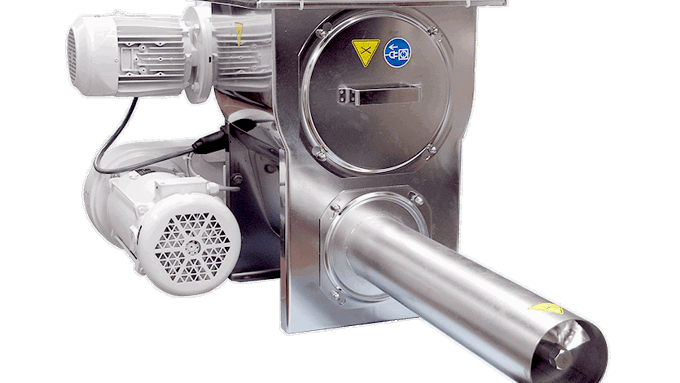

S500

The S500 single screw feeder is available as a volumetric unit or as a gravimetric unit with a three-point suspension scale.

The S510 is a version without the horizontal agitator.

Feed Rates

   Auger screws Spiral screw
Min. Max. Min. Max.
coarse - dm3/h 140 45300 140 45300
coarse - ft3/h 5 1600 5 1600
fine - dm3/h 70 21000 - -
fine - ft3/h 2.5 742 - -

Product contact parts are manufactured of stainless steel.

Hazardous location options (ATEX, NEC) available.

Consult Product Specification Sheet for more details.

Download the Product Specification Sheets

Related Topics

Feeding Technology

Over 100 years of know-how behind our products

Coperion K-Tron KCM Feeder Control Module with LCD display

SmartConnex Controls

Complete control at your fingertips

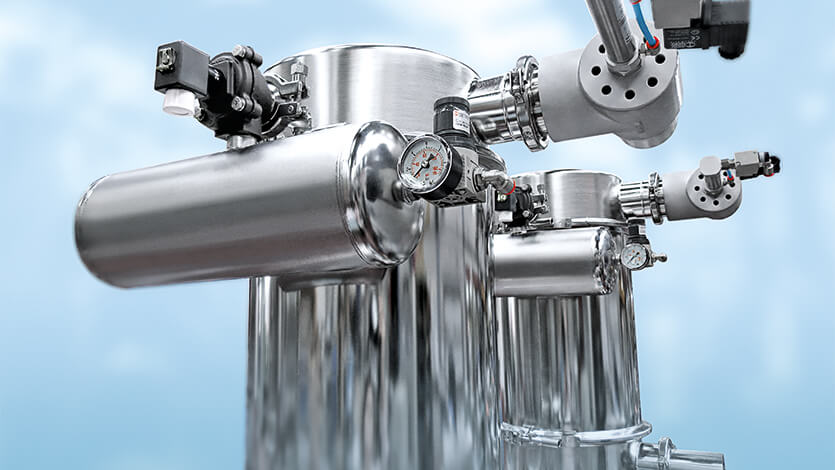

Vacuum Sequencing Receivers
