Coperion K-Tron

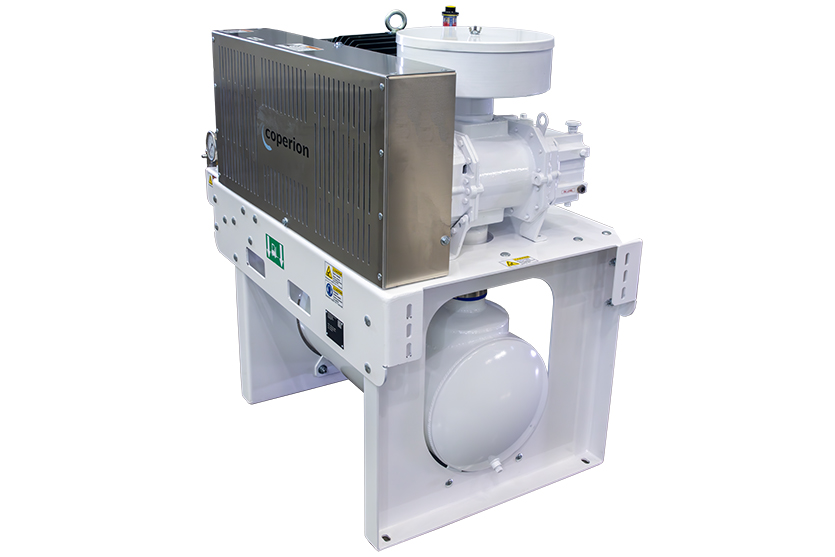

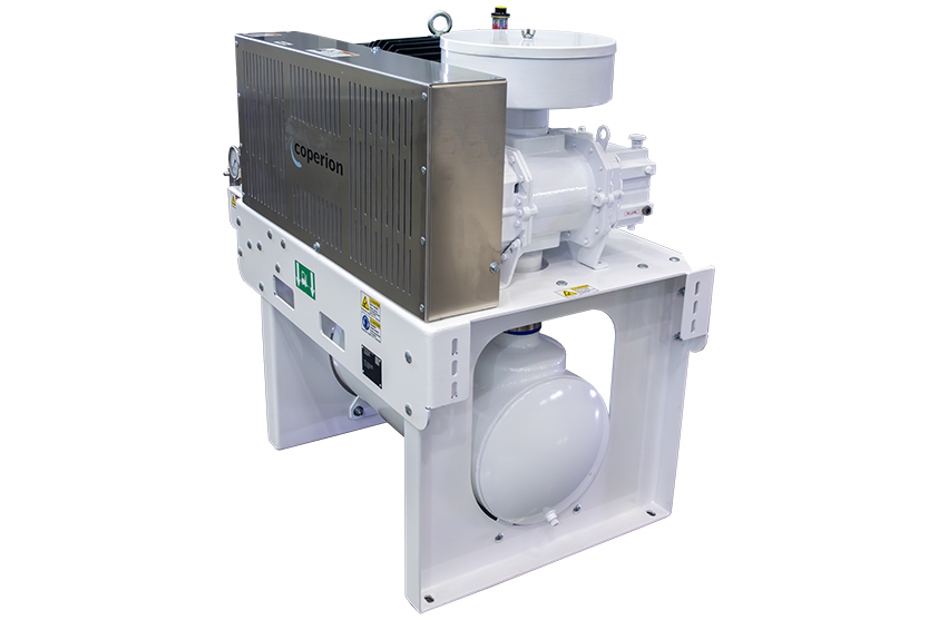

Positive displacement pressure blower packages for continuous pressure conveying systems

The Positive Displacement Pressure Blower is part of Coperion K-Tron’s wide range of quality blower packages for conveying pellets, powders and granular materials. With blowers for 51 mm (2 in) through 254 mm (10 in) conveying systems up to 1 bar (15 PSIG) pressure, our system engineers can select a 2.2 to 187 kW (3 to 250 HP) blower that is specifically tailored to respond efficiently for your application.

Standard Features

  • Positive displacement blower
  • IEC or NEMA motor mount frame
  • Heavy-duty blower base
  • Totally enclosed drive guard
  • Easy-to-read liquid filled pressure gauge
  • Inlet filter/silencer
  • Chamber-absorptive type discharge silencer
  • Vibration mounting pads
  • Check valve
  • Mechanical relief valve
  • IP65 (NEMA 4, 4X) adjustable pressure switch
  • OSHA and CE compliant

Related Industries

  • Plastics
  • Chemicals
  • Food & Pet Food
  • Minerals
  • Nonwovens
