Rotary Vane Vacuum Blower

Want to find out more about this product?

Get in touch

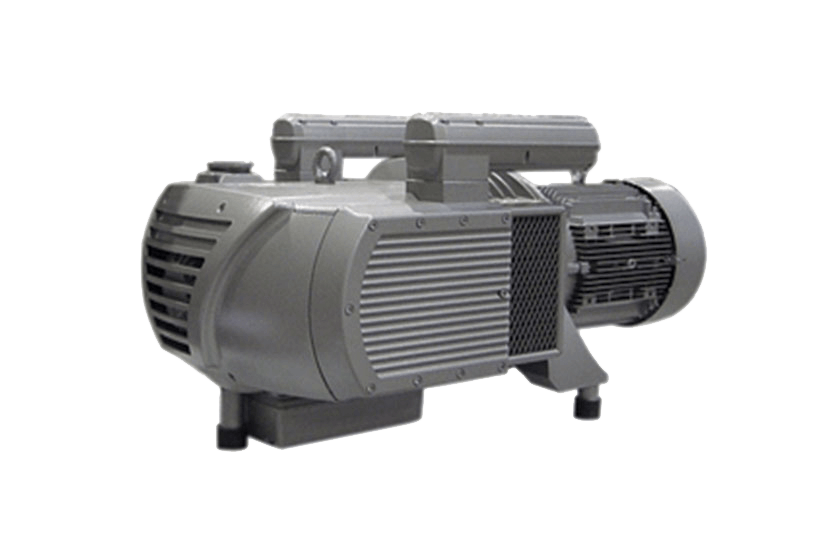

Rotary Vane Vacuum Blower shown with optional in-line static filter
Coperion K-Tron

Rotary vane vacuum blower packages

The oil-less rotary vane vacuum blower is part of Coperion K-Tron’s wide range of quality blower packages for conveying pellets, powders and granular materials. The rotary vane blower is ideal for applications where material is being conveyed short distances and for environments where oil and water are unfavorable.  With rotary vane blowers for 38 mm (1.5 in) through 76 mm (3 in) conveying systems, our system engineers can select a 4.0 to 9.3 kW (7.5 to 12.5 HP) blower that is specifically tailored to respond efficiently for your bulk material handling application.

Standard Features

  • Blower package comes fully mounted and prewired
  • Heavy-duty blower base
  • Oil-less dry operation
  • Quiet and cool operation
  • Vibration mounting pads
  • Long-life, self-lubricating graphite composite vane
  • Discharge silencer
  • Direct drive motor (no belts or gears)
  • Air-actuated vacuum breaker valve
  • Spring-loaded vacuum relief valve
  • Low maintenance
  • Operates on a continuous basis
  • OSHA and CE compliant

Related Industries

  • Plastics
  • Plastics Recycling
  • Chemicals
  • Food & Pet Food
  • Pharmaceutical
  • Minerals
  • Nonwovens
