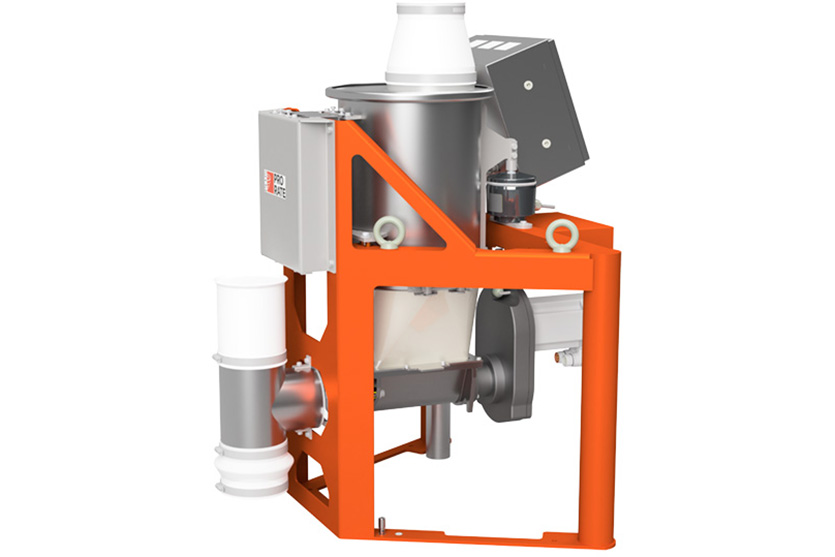

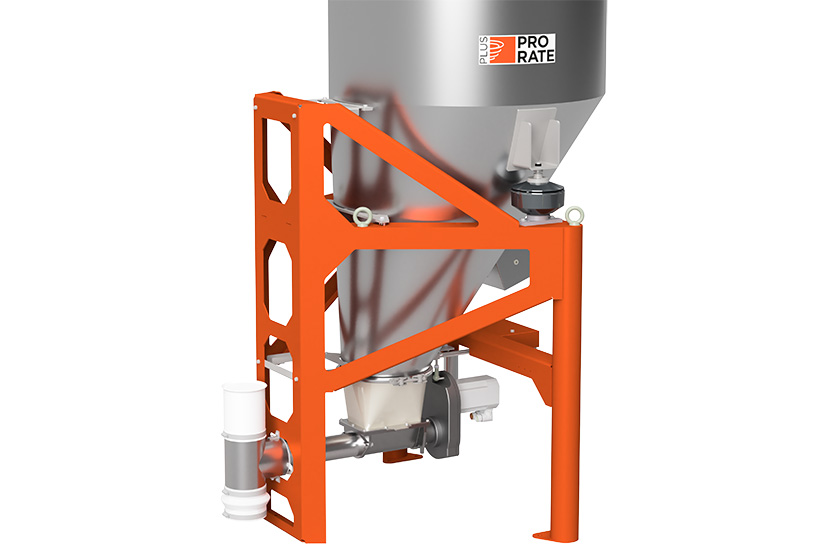

The ProRate PLUS-M Feeder is a continuous gravimetric single screw feeder, ideal for feeding free-flowing bulk solids that require neither horizontal nor vertical agitator. Perfect for feeding pellets in the plastics industry. The feeder with its extension hopper is suspended on a weighing system in a compact frame. Together, the proven Smart Force Transducer (SFT) weighing technology together with state-of-the-art PCM controls provide accurate and reliable performance. The AC vector-duty motor provides a high turndown, offering great flexibility in feed rate range. Product contact parts are manufactured of stainless steel and polyurethane.
Feed Rates |
Auger screw 1 screw/pitch/tube Ø: 46/30/56.3 mm |
Auger screw 2 screw/pitch/tube Ø: 46/60/56.3 |
| Fine granulate (0.82 kg/dm3) |
85 - 960 dm3/h | 185 - 2050 dm3/h |
| 3 - 34 ft3/h | 6.5 - 72.4 ft3/h | |
| Plastic pellets (0.66 kg/dm3) |
80 - 980 dm3/h | 180 - 2100 dm3/h |
| 2.8 - 34.6 ft3/h | 6.4 - 74 ft3/h |
Actual feed rates depend on screw fill and vary based on individual material characteristics (flowability, particle size and geometry). The sample feed rates were tested with free-flowing materials as stated. For feed rates at the upper or lower limits of these ranges, check with a Coperion K-Tron Test Lab.
The PLUS-M feeder comes with both vertical and horizontal outlets as well as two screw sizes.
